TYM-W5050 horizontal liquid silicone rubber injection molding machine
- Product Detail
| Clamping Unit | |
|---|---|
| Clamping Force | 150T |
| Opening Stroke | 215-615 mm |
| Tie-Bars Space | 500*500 mm |
| Ejection Force | 7.8 T |
| Ejection Stroke | 150 mm |
| Injection Unit | |
| Shot Volume | 165g |
| Injection Rate | 30 g/s |
| Injection Pressure | 19.6 T |
| Others | |
| Pump Pressure | 21 Mpa |
| Motor Power | 11 KW |
| Heater Power | 9 KW |
| Mould Orientation Ring Diameter | Φ 100 mm |
| Machine Weight | 4.1 T |
| Machine Dimension | 3.8*0.95*1.75 m |
Horizontal Liquid Silicone Rubber (LSR) injection molding machine-silicone injection machine for cake molds, baby feeding products,Silicone auto parts making machine
Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.
The main feature of the horizontal LSR molding machine:
Newly-optimized integrated all-in-one design
Meet multiple requirements on the automatic manufacturing technique for LSR products.
Shorter the mould closing and opening time, improve the production efficiency.
Remote control function
Multi-section mould closing and opening and injection, speed adjusting stepless.
The Horizontal LSR machine for the applicable scope:
Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
Silicone high-voltage cable accessories,
Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.

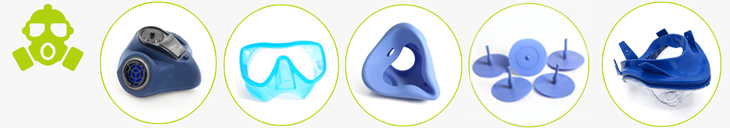

Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.
Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
